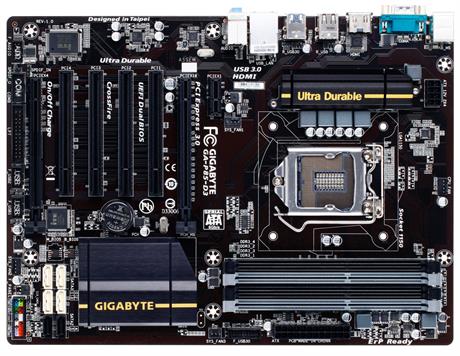

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel^® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel^® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel^® Core™ processors and Intel^® B85 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel^® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.

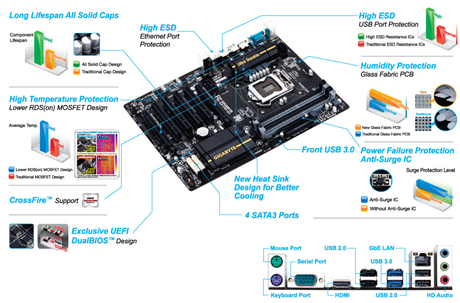

GIGABYTE Ultra Durable™ 4 Plus

GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Cool

All New Heat Sink Design
GIGABYTE motherboards feature new heatsink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE 8 Series motherboards offer both passive, active and water cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

Ultra Performance

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe

GIGABYTE UEFI DualBIOS™

GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

High ESD Protection for USB and LAN (USB 3.0 only)

GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

Supports 4^th Generation Intel^® Core™ processors
GIGABYTE Ultra Durable™ 4 Plus Technology
GIGABYTE UEFI DualBIOS™
Multi-GPU Support
GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
GIGABYTE On/Off Charge™ for USB devices
LAN with high ESD Protection
HDMI 1.4
Intel^® Small Business Advantage

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^®Pentium^® processors/Intel^® Celeron^® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® B85 Express Chipset
Memory	4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. Maximum shared memory of 1 GB
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF In Support for S/PDIF Out
LAN	Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) 4 x PCI slots
Multi-Graphics Technology	Support for AMD CrossFire™ technology
Storage Interface	Chipset: 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3) supporting up to 4 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5) supporting up to 2 SATA 3Gb/s devices
USB	Chipset: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x S/PDIF In header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x serial port 1 x HDMI port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Bundle Software	Norton Internet Security (OEM version) Intel^® Rapid Start Technology Intel^® Smart Connect Technology Intel^® Small Business Advantage
Operating System	Support for Windows 8/7
Form Factor	ATX Form Factor; 30.5cm x 22.5cm
